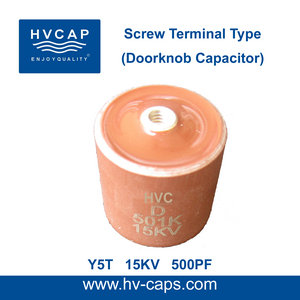

High Voltage Ceramic Door Knob Capacitor 15KV 500pf (15KV 501K)
Manufacturer: HVC
Series: Ceramic Doorknob Capacitor(Screw Terminal Type Capacitor)
Capacitance: 500pf (501K)
Voltage - Rated: 15KV
Tolerance: K---± 10 %
Temperature Coefficient: N4700
Mounting Type: Leaded,Through Hole
Operating Temperature: -25℃~+85℃
Dielectric Strength: about 200% of rated voltage
Dissipation Factor tanδ: 0.1%~0.2%
Insulation Resistance: Min. 200 000 MΩ at 25 °C
Corona Limit: < 5 pC at rated AC voltage
Product Description:
Ceramic Capacitor 20KV102K for High Voltage Application, High voltage ceramic capacitor 20KV 100pF, high voltage ceramic capacitor 35KV6000PF for X-ray machine, high voltage ceramic capacitor 3300pf 10kv, high voltage ceramic capacitor 6kv 100pf
Application:
(PFC)Power Factor Controllers, Power Factor Compensator, Power Factor Correction Capacitors, Reactive Compensation Capacitors, Reclosers, Autorecloser, Three-Phase Magnetic Recloser, Recloser Control, Vacuum Recloser, Oil Circuit Recloser, Vacuum Distribution Recloser
